Name: Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF180S
Price: 13.00 USD
Availability: InStock

Rumah > Produk > Mesin pengeboran sumur air >

Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig

compact crawler water well drilling rig

180m depth water well drilling machine

crawler type deep well drilling rig

Tempat asal:

Cina

Nama merek:

RanCheng

Sertifikasi:

CE, ISO 9001:2000

Nomor model:

RCF180S

Hubungi Kami

Meminta Kutipan

Rincian produk

Nama Produk:

Rig Pengeboran Kecil yang Dipasang dengan Crawler

Model produk:

RCF180S

Kedalaman pengeboran:

180m

Tenaga Mesin:

77,3KW

Kecepatan berbaris:

2.5 km/jam

Bor Diameter Pipa:

76mm/89mm

Menyoroti:

compact crawler water well drilling rig

180m depth water well drilling machine

crawler type deep well drilling rig

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

US$13,000-13,900

Kemasan rincian

Itu dapat dikirim dengan satu wadah 20 "

Waktu pengiriman

10-15 hari kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

100 Set per bulan

Produk terkait

Video

RCF180C Hydraulic Crawler-Mounted Multifunctional Mobile Water Well Drilling Rig

Dapatkan Harga Terbaik

Video

RCF180S Tracked Hydraulic Small Water Well Drilling Rig Is Selling Well

Dapatkan Harga Terbaik

Video

RCF1000C Multi Functional Hydraulic Water Well Drilling Rig With A Drilling Depth Of 1000 Meters

Dapatkan Harga Terbaik

Video

RCF180S Crawler Mounted Water Well Drilling Rig A Best Selling Model

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Maximum Drilling Depth 180m Compact Crawler Type Water Well Drilling Rig

The RCF180S is a versatile and efficient small crawler drilling rig that supports both mud pump and air compressor drilling methods. It can drill to a maximum depth of 180 meters, with a drilling diameter of 90-300 millimeters. Powered by a 77.3KW Yuchai engine, it ensures stable and continuous power output while also offering excellent energy efficiency, making it suitable for various geological conditions.

This drilling rig is very easy to operate, energy-efficient, and durable, making it ideal for field operations such as water well drilling, boreholes, and agricultural irrigation wells.

Technical Specifications

Bore diameter (hammer)	90-300mm
Bore depth	180m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Once-time advance length	2.4m
Pipe diameter	76mm/89mm
Pipe length	2m
Push force	4T
Lifting force	15T
Max torque of rotary	4000-4600Nm
Rotary speed	45-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension (L×W×H)	2300×1200×1900mm
Weight	2700kg
Diesel engine	77.3KW Yuchai engine

Key Advantages

The RCF180S drilling rig has a maximum drilling depth of 180 meters and a bore diameter of 90-300 mm, precisely matching diverse needs such as domestic water wells, geological exploration, and agricultural irrigation wells, with strong adaptability in drilling depth and diameter.
Equipped with a 77.3KW Yuchai engine, it provides stable power and excellent energy efficiency; it is compatible with both mud pump and air compressor drilling methods, easily handling various geological conditions such as clay, sand, and weathered rock.
The machine is simple and easy to operate, requiring no high-level skills, and can perform conveniently and efficiently even in complex outdoor environments, reducing labor and training costs.
Strictly adhering to industrial-grade materials and processes, it combines energy efficiency and wear resistance, ensuring long-term stable operation in harsh outdoor conditions, offering both durability and cost-effectiveness.

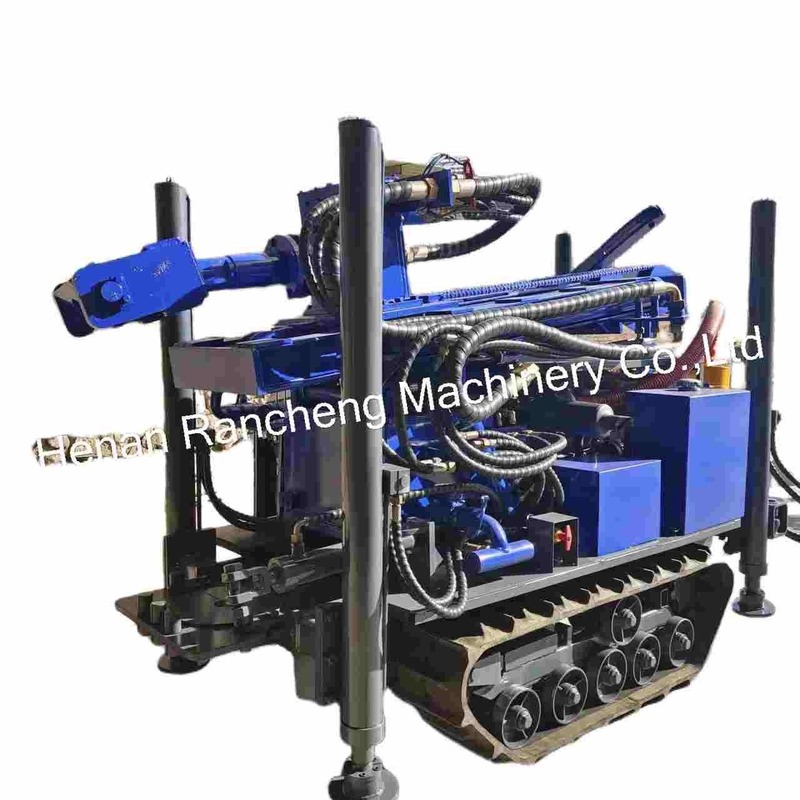

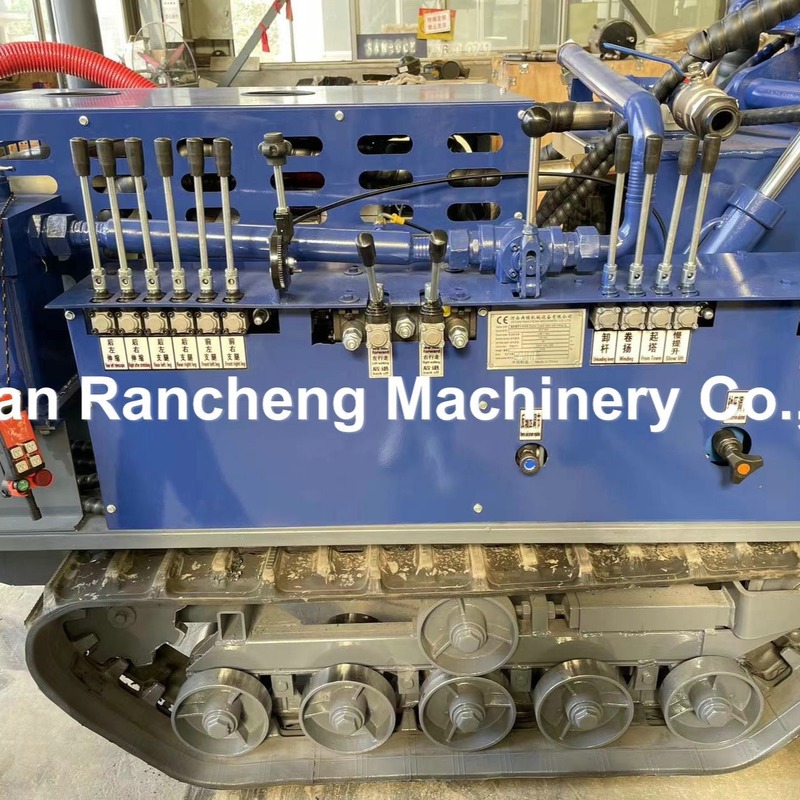

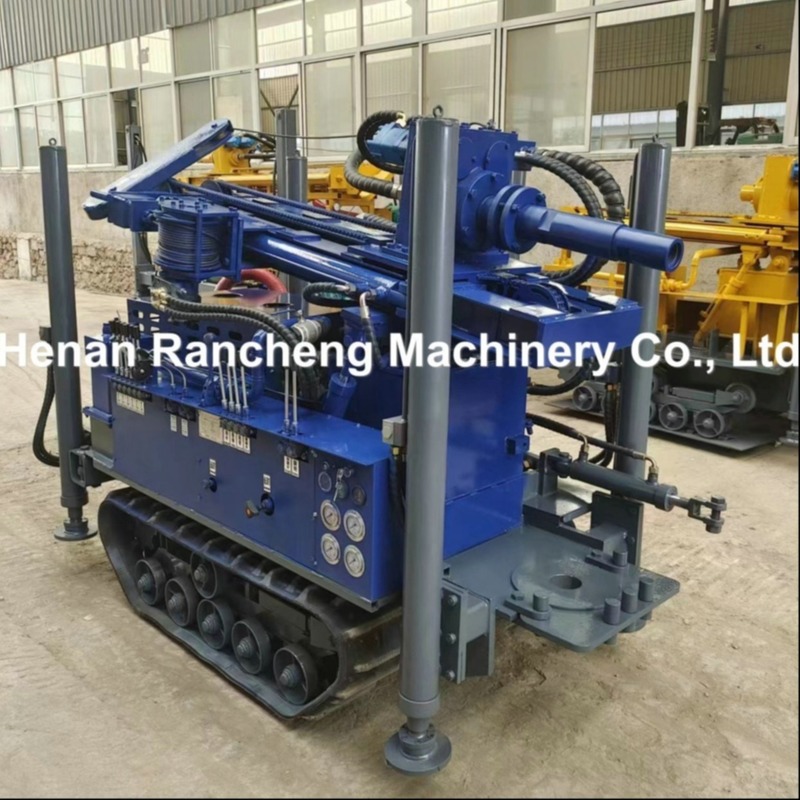

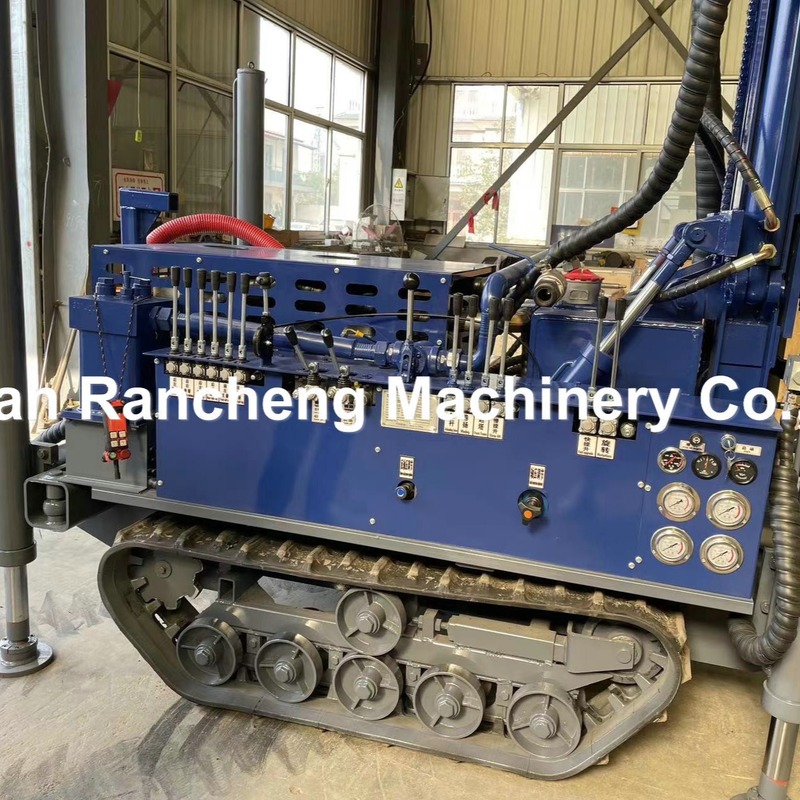

Product Images
