Name: Digital Logging System Specially Designed For The Convenience Of Field Work
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-1
Price: 8,500.00 USD
Availability: InStock

Rumah > Produk > Peralatan Survei Geofisika >

Digital Logging System Specially Designed For The Convenience Of Field Work

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Tempat asal:

Tiongkok

Nama merek:

RanCheng

Sertifikasi:

CE, ISO 9001:2000

Nomor model:

RCQ-1

Hubungi Kami

Meminta Kutipan

Rincian produk

Keluaran Sinyal:

Antarmuka USB

Pengukuran Kedalaman:

0 ~ 9999,99 meter

Akurasi Pengukuran Kedalaman:

lebih baik dari 0,1%

Kisaran pengukuran kecepatan:

0 ~ 9999 meter/jam

Akurasi pengukuran kecepatan:

Lebih baik dari 5%

Menyoroti:

digital logging system for fieldwork

geophysical survey logging equipment

portable digital logging system

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

US $ 7000-10000

Kemasan rincian

Itu dapat dikirim dengan satu wadah 20 "

Waktu pengiriman

10-15 hari kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

100set per bulan

Produk terkait

Video

Digital Logging System Specially Designed For The Convenience Of Field Work

Dapatkan Harga Terbaik

Video

300m Geophysical Equipment Borehole Water Well Log Tool 1% (Scale) Apparent Resistivity Measurement Accuracy

Dapatkan Harga Terbaik

Video

Peralatan Logging Sumur Air Log Sumur Geofisika Alat Logging, Peralatan Logging Lubang Bor Alat Survei Lubang Bor Geoteknik Dijual

Dapatkan Harga Terbaik

Video

Peralatan Geofisika 300m Alat Log Sumur Air Bor Apparent Resistivity Measuring Logging System

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Digital Logging System Specially Designed For The Convenience Of Field Work

Product Description

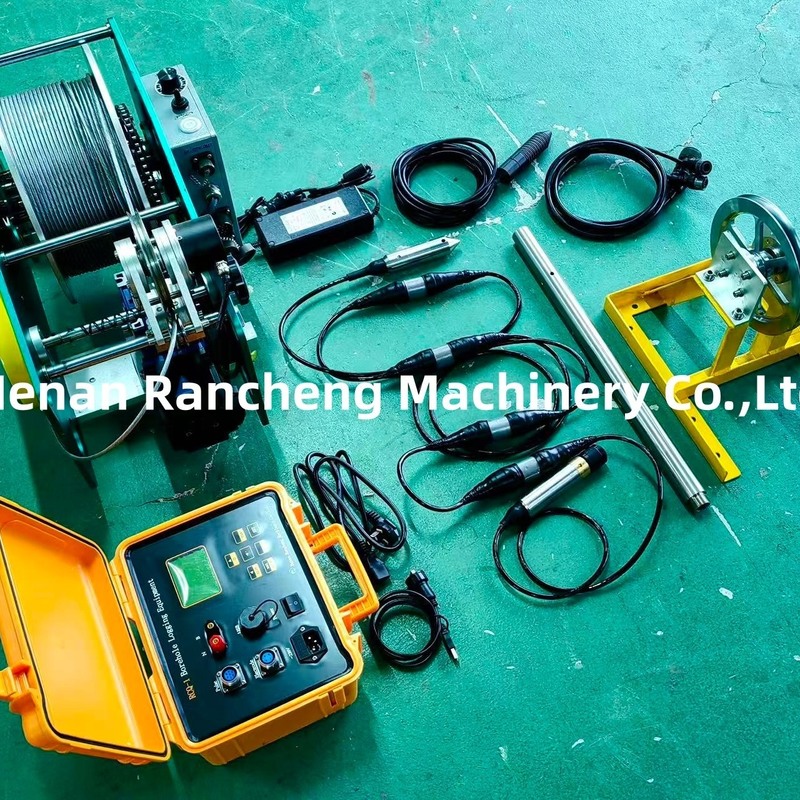

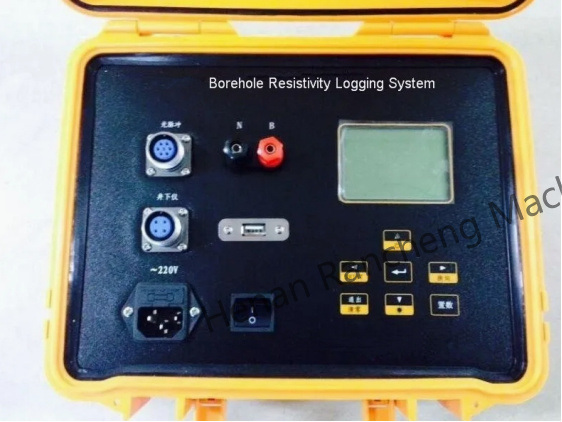

The RCQ-1 resistivity logging equipment is used to measure apparent resistivity in borehole formations. This surface instrument connects to a downhole electrode system and works with a PC to measure parameters such as apparent resistivity and natural potential. Our this RCQ-1 instrument uses an adaptive power supply scheme, delivering a wide range of AC square waves to the downhole formation. Both the supply current and voltage are measured simultaneously. This makes it easy to operate, has a wide measurement range, and is lightweight and reliable.

Technical Specifications

No.	Item	Parameter
1	External Power Supply	AC 220V ± 20%, 50Hz, 20W
2	Working Condition	Temperature: -20 ºC ~ +40 ºC, humidity ≤ 90%
3	AB Power Supply	6~60V, 0~200mA, AC square wave
4	Applicable Electrode System	A1.6M 0.4N
5	Apparent Resistivity Measurement Range	1-2000Ωm
6	Apparent Resistivity Measurement Accuracy	1% (scale)
7	Natural Potential Measurement Range	±1200mv
8	Natural Potential Measurement Accuracy	1%
9	Signal Output	USB interface
10	Depth Measurement	0 ~ 9999.99 meters
11	Depth Measurement Accuracy	better than 0.1%
12	Speed Measurement Range	0 ~ 9999 meters / hour
13	Speed Measurement Accuracy	better than 5%

Product Features

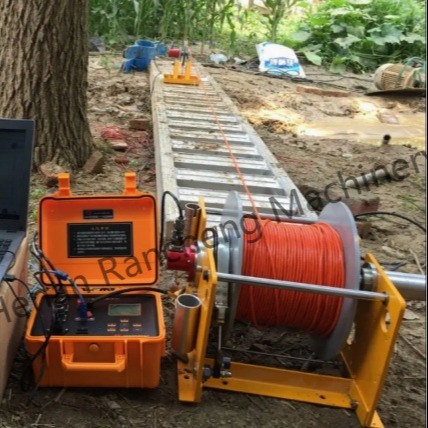

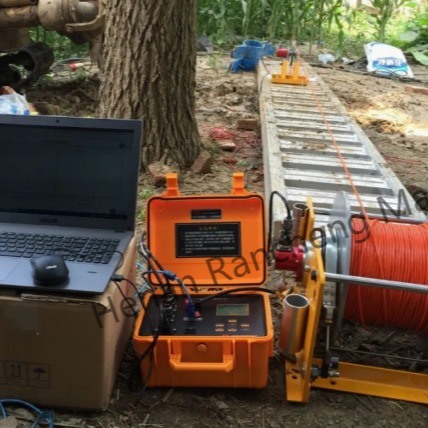

Real-time data measurement and transmission for field operations
Kevlar cable and electric winch design for convenient deployment
Dual voltage channels allow simultaneous recording of two curves, improving efficiency
Gradient and natural potential measurement functions for versatile applications
AB measurement method reduces artificial electric field interference
High accuracy and repeatability ensure reliable geophysical survey results
Professional software for fast curve plotting and data processing


Digital Logging System Specially Designed For The Convenience Of Field Work 0

Digital Logging System Specially Designed For The Convenience Of Field Work 1

Digital Logging System Specially Designed For The Convenience Of Field Work 2

Digital Logging System Specially Designed For The Convenience Of Field Work 3

Digital Logging System Specially Designed For The Convenience Of Field Work 4

Digital Logging System Specially Designed For The Convenience Of Field Work 5
