Name: Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RC100YA2
Price: 15.50 USD
Availability: InStock

Rumah > Produk > Rig pengeboran DTH >

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling

40-45m hydraulic DTH drilling rig

rotary hammer drilling rig

deep hole DTH drilling machine

Tempat asal:

Cina

Nama merek:

RanCheng

Sertifikasi:

CE, ISO 9001:2000

Nomor model:

RC100YA2

Hubungi Kami

Meminta Kutipan

Rincian produk

Nama:

Rig pengeboran DTH RC100ya2

Model:

RC100YA2

Diameter bore:

90—168mm

Kedalaman Lubang:

40m

Chassis Ground Clearance (MM):

260

Konsumsi Udara (m³/mnt):

7-15

Torsi Rotary (NM):

2000

Untuk rock (f):

6-20

Menyoroti:

40-45m hydraulic DTH drilling rig

rotary hammer drilling rig

deep hole DTH drilling machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

USD14.500,00-16.500,00

Kemasan rincian

Itu dapat dikirim dengan satu wadah 20 "

Waktu pengiriman

10-15 hari kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

100set per bulan

Produk terkait

Video

Jenis Terintegrasi Pengeboran DTH Portabel Pertambangan Hard Rock Blast Hole Rig Pengeboran DTH Hidraulik

Dapatkan Harga Terbaik

Video

Perangkat bor permukaan hidraulik yang dipisahkan dari lubang (DTH) untuk torsi rotasi 3200 Nm

Dapatkan Harga Terbaik

Video

Pengeboran Rig DTH Terpisah Permukaan Hidraulik (DTH) Untuk Penambangan Lubang Terbuka

Dapatkan Harga Terbaik

Video

Mesin Pengeboran Blasthole Blasthole untuk Tambang

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling

Machine Introduction

The 100YA2 fully hydraulic down-the-hole drill utilizes the latest hydraulic technology, resulting in low air consumption and high torque. Its compact design is mounted on slide rails, ensuring stability during drilling.

This down-the-hole drill utilizes a new dual-motor turret as its rotation mechanism, enabling it to maintain high torque while working in conjunction with the air compressor during ground blasting operations, enabling large-diameter drilling.

Machine Specifications

Bore diameter(mm)	90—140
Bore depth(m)	30
Walk speed(km/h)	2
Once promotion(mm)	2000
Grade ability (°)	30
Air pressure(Mpa)	0.7—1.4
Chassis ground clearance(mm)	260
Air consumption(m³/min)	7—15
Skid pitch(°)	Up and down100
Sliding tilt swing (°)	left35,right10
For rock(F)	6—20
Skid compensation(mm)	900
Dimension(LWH)(mm)	430021302160
weight(Kg)	2900
Diesel engine power	33KW Yuchai

Machine Advantages

1. This drill's hydraulic motor offers low rpm and high torque.
2. The drill uses hydraulic cylinder propulsion for stable performance.
3. A two-stage air filter ensures air quality and extends the life of the diesel engine.
4. Automatic monitoring of hydraulic and propulsion pressures.
5. The drill is equipped with a spotlight for convenient nighttime operation and maintenance.
6. This down-the-hole drill rig features maneuverability, strong slope-climbing capability, and ease of drilling and repositioning, making it ideal for operations in harsh conditions.

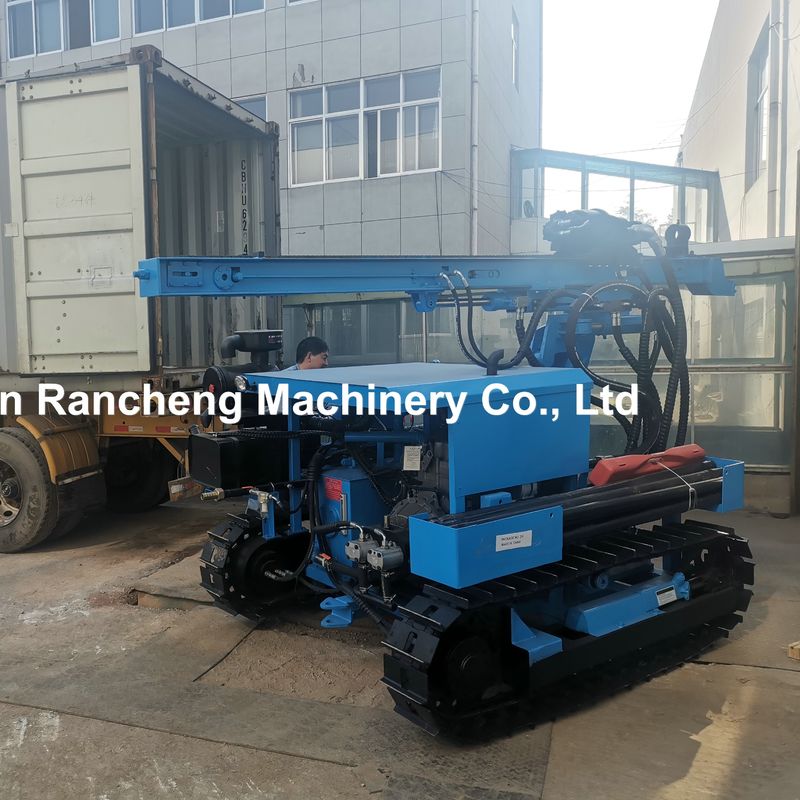

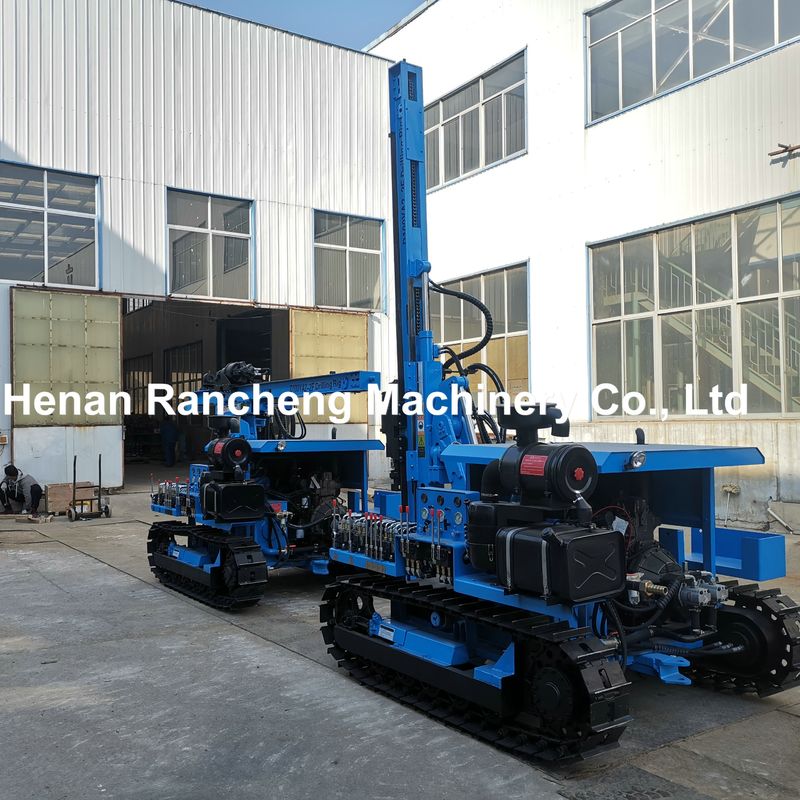

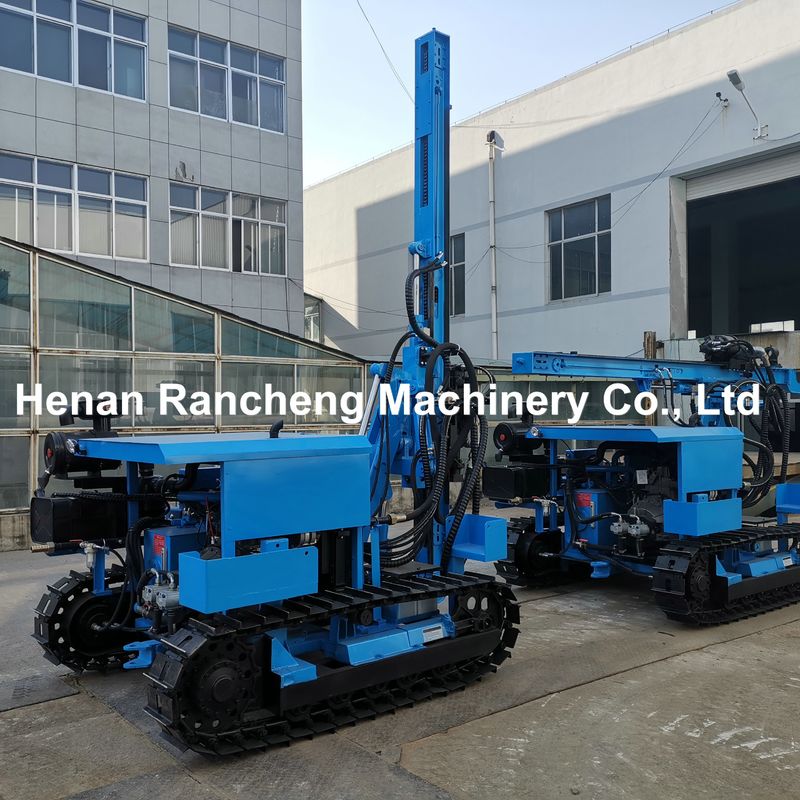

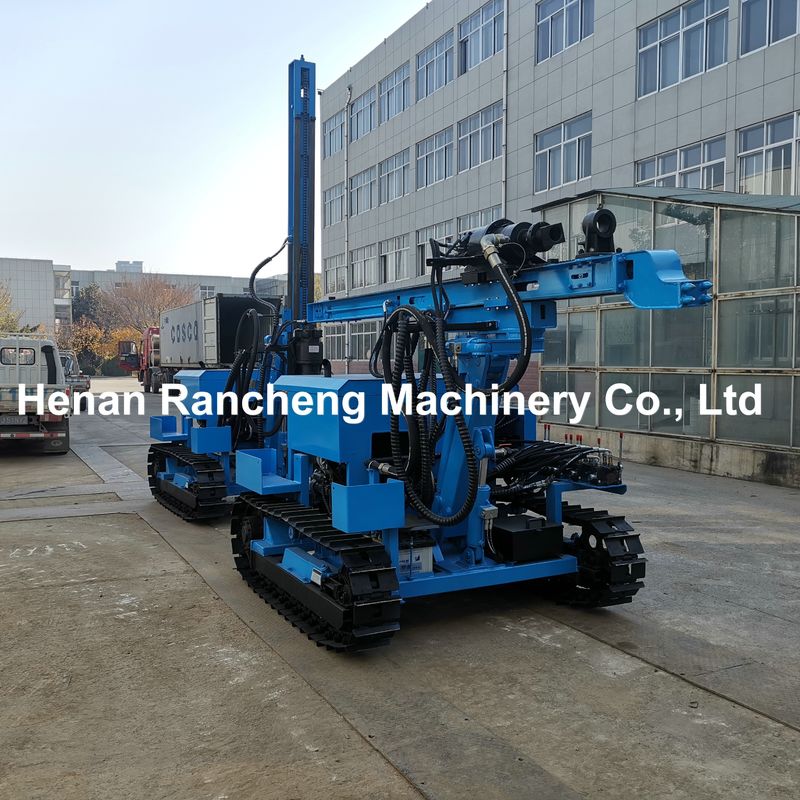

Machine Pictures

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling 1

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling 3

Drill Depth 40-45m Hydraulic DTH Drilling Rig Both Rotary And Hammer Drilling 4
