Crawler Mounted Type RCS200C Drilling Rig Drill Depth 200m Hydraulic Drill System And Operation

crawler mounted hydraulic drilling rig

200m depth portable water well drill

RCS200C drilling rig with hydraulic system

Tempat asal:

Cina

Nama merek:

RanCheng

Sertifikasi:

CE, ISO 9001:2000

Nomor model:

RCS200C

Hubungi Kami

Meminta Kutipan

Rincian produk

Model:

RCS200C

Kedalaman bor:

200m

Geologi dibor:

Semua jenis

Jaminan:

1 tahun

Mesin diesel:

45kw

Menyoroti:

crawler mounted hydraulic drilling rig

200m depth portable water well drill

RCS200C drilling rig with hydraulic system

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

US $ 7000-8000

Kemasan rincian

Pengiriman Standar

Waktu pengiriman

10-15 hari kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

100set per bulan

Produk terkait

Video

Mesin Pengeboran Sumur Air Kecil Perayap Karet RCS200C Kedalaman Maksimal 200m

Dapatkan Harga Terbaik

Video

Mesin Pengeboran Air Hidrolik Untuk 150 Meter Lubang Irigasi Pertanian

Dapatkan Harga Terbaik

Video

Easy Operation RCS200C Rubber Crawler Portable Drilling Rig With 150m Depth 450mm Diameter

Dapatkan Harga Terbaik

Video

200m Small Water Well Rock Drilling Rig With 2000KG Hosting Capacity

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

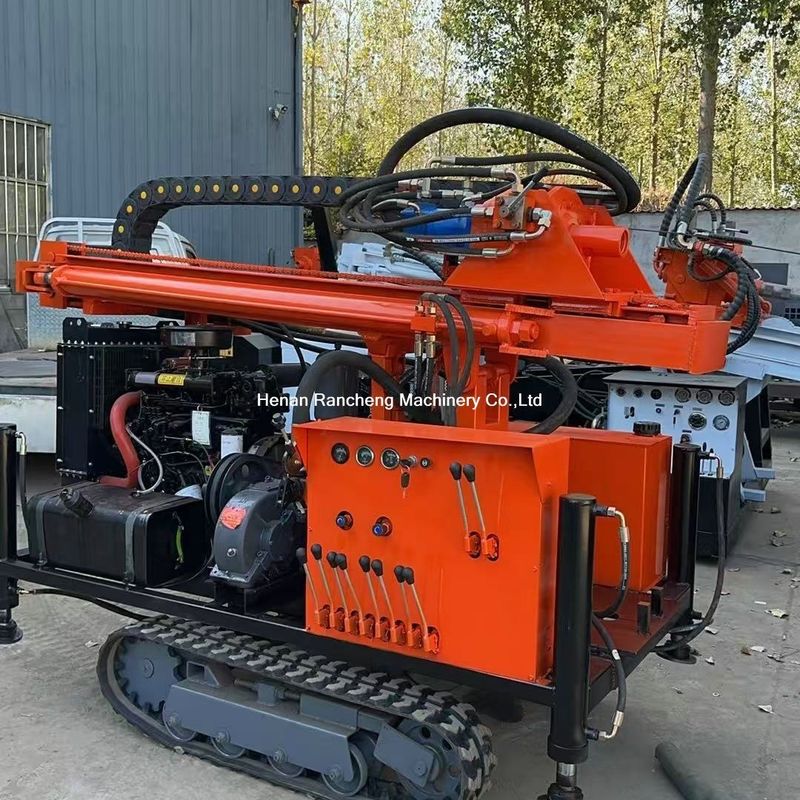

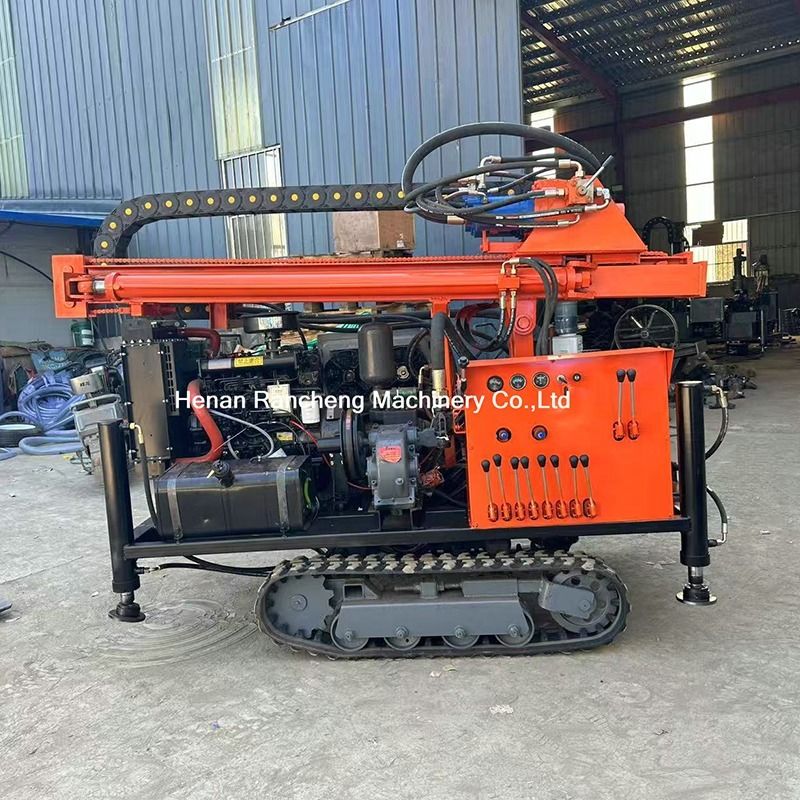

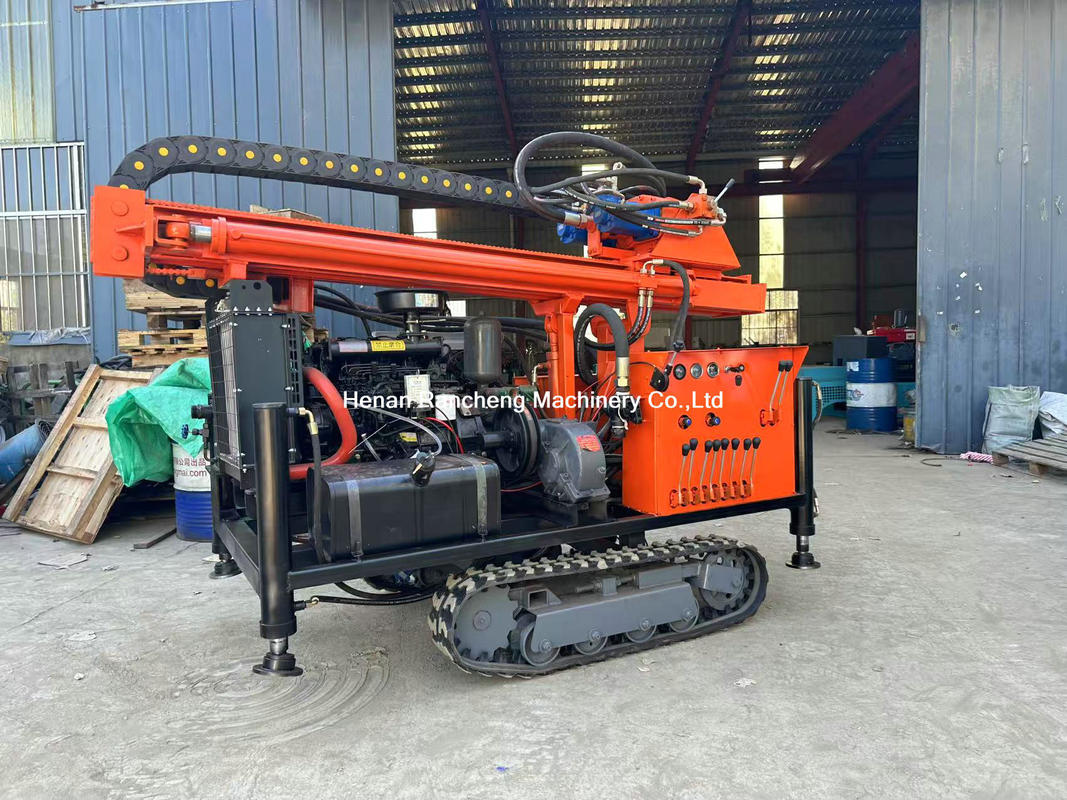

Crawler Mounted Type RCS200C Drilling Rig Drill Depth 200m Hydraulic Drill System And Operation

Product Description

The RCS200C small water well drill is a trailer-mounted small water well drill rig featuring advanced hydraulic technology. It features a top-mounted engine powered by a mud pump and air compressor.

This fully hydraulic, compact drill rig is suitable for deep rotary drilling, reaching a maximum depth of 200 meters. It is lightweight, highly efficient, and versatile. It can perform rotary drilling using air, foam, or mud, depending on the application.

Technical data

Model	RCS200C
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2000KGS
Diesel engine
Power	45KW Weifang Hengtong

Application:

This hydraulic water well drilling machine is widely used in industrial and agriculture water project,farm irrigation well drilling ,home use well drilling ,geothermal well drilling ,inspect well and other exploration borehole drilling
