Tempat asal:
Cina
Nama merek:
RanCheng
Sertifikasi:
CE, ISO 9001:2000
Nomor model:
RCS200C

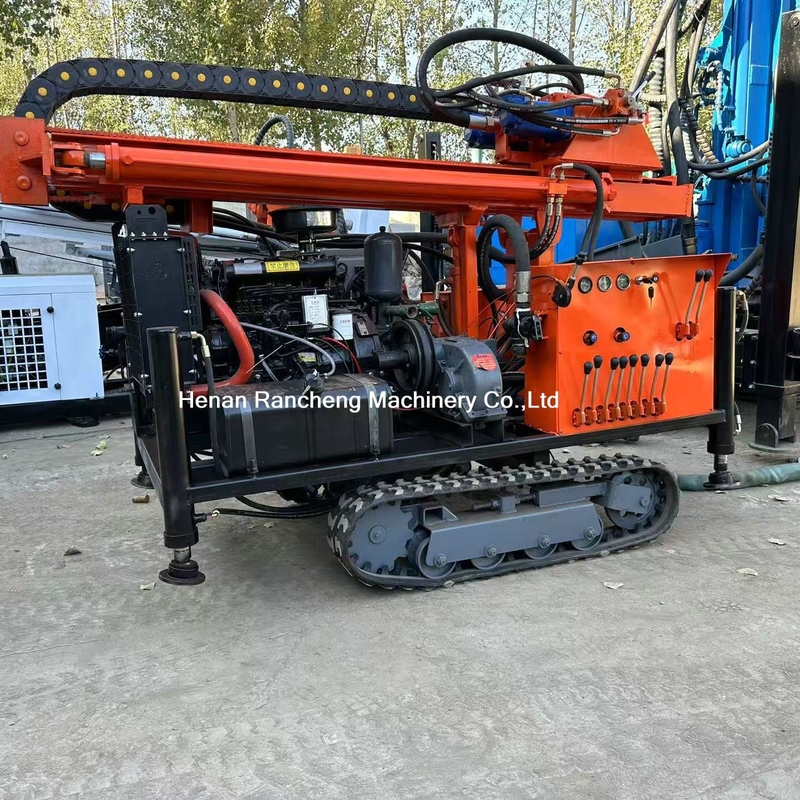

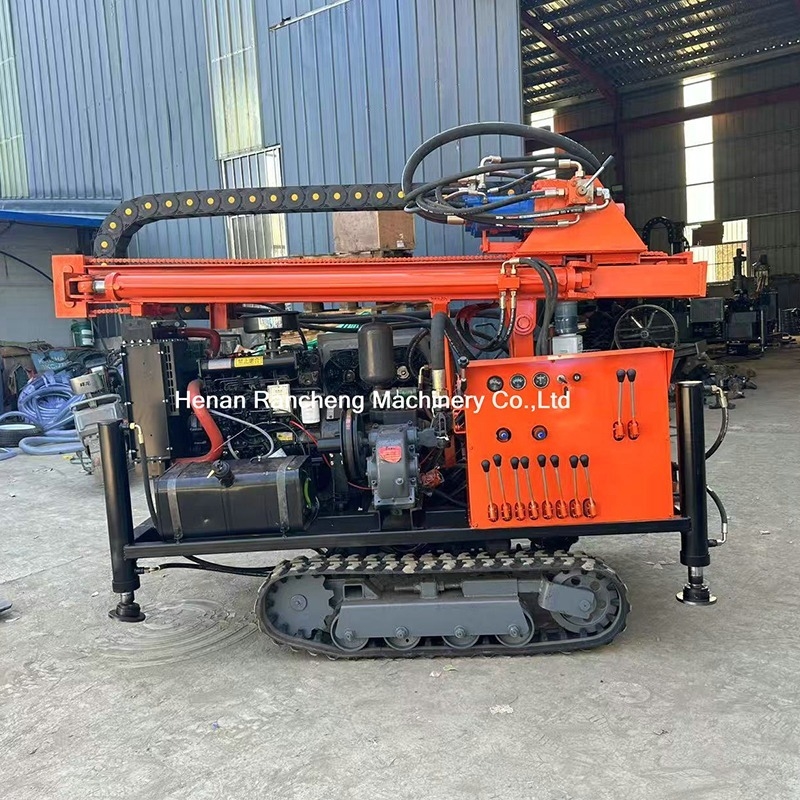

200m Small Water Drilling Machine Farm Irrigation Well Drill Rig
The RCS200C is a compact water well drill rig whose core strength lies in its top drive hydraulic system. This system provides stable torque to the drill string, reducing energy loss and enabling more precise drilling control. It supports dual-mode operation of the mud pump and air compressor, allowing operators to flexibly choose air, foam, or mud circulation methods based on different formation types.
Whether using rotary drilling or down-the-hole hammer drilling, this drill rig can operate efficiently in a wide range of geological conditions—from soft soil and gravel to hard rock—and covers a drilling depth range of 0 to 200 meters. Its fully hydraulic layout simplifies power transmission, reduces failure points, and helps ensure stable operation at the jobsite.
The RCS200C weighs approximately 2,000 kg and features a rubber-track chassis, making it easy to tow with a regular pickup truck, eliminating the need for large transport vehicles and significantly reducing logistics costs. Its diesel engine provides independent, off-grid power, enabling it to operate even in remote, mountainous areas with limited electricitysupply
In addition, its compact size and high maneuverability make it suitable for flexible use in construction sites with limited space or difficult access. Currently, this drilling rig has a wide range of applications, including water supply projects, agricultural irrigation well excavation, shallow geothermal energy device construction, exploration sampling drilling, environmental monitoring well construction, and small-diameter foundation pile and micropile projects. It is a multifunctional device that can cope with various field construction conditions.
Model | RCS200C |
Geology drilled | All kinds |
Drill depth | 200 m |
Drilling Diameter | 90 -300mm |
Drill system and operation | Hydraulic |
For rock | 6-20F |
Air consumption | 17-35m³/min |
Air pressure | 1.7-3.0Mpa |
Rotary head | |
Rotation Torque | 4000-5000N.m |
Rotation speed | 80-200rpm |
Lifting capacity | 14000KGS |
Pull down capacity | 4000KGS |
DRILL PIPE | |
Drill pipe length | 2 meter |
Drill pipe diameter | 60/76/89 mm |
MUD PUMP | |
Flow capacity | 160 liter/min |
working pressure | 1.3MPA |
DIMENSIONS | |
Transport size | 2300*1200*1700mm |
Weight | 2000KGS |
Diesel engine | |
Power | 45KW Weifang Hengtong |
1. Hydraulic Drilling System
The RCS200C drilling rig is equipped with a fully hydraulic drive system, ensuring stable power transmission and reducing the risk of mechanical failure. It can be used with both down-the-hole hammer and rotary drilling, meeting the needs of various projects. It can also be equipped with a mud pump or air compressor, enabling it to penetrate even hard rock when necessary.
2. Adaptability to Complex Terrain
The rubber track chassis allows the rig to maneuver flexibly over uneven terrain, such as farmland, hillsides, and narrow paths. Weighing approximately 2,000 kg, it can be towed by a standard pickup truck for easy transportation. Its modular design allows for rapid assembly and disassembly, allowing on-site setup in less than 30 minutes.
3. Compatible with Various Geological Conditions
The RCS200C is compatible with air, foam, and mud drilling systems, allowing for adjustments to suit different formations. It can handle soft soil, gravel, and hard rock with ease, making it useful in field projects such as rural water supply wells. Furthermore, it operates effectively in diverse environments, including mountainous terrain, arid regions, and low-temperature areas.
4. Balancing Cost Control and Practicality
The diesel engine allows this device to operate independently of the power grid, helping to reduce energy operating and maintenance costs. It can be used in a variety of drilling scenarios, including water wells, geothermal heating wells, test holes, and shallow exploration projects. Furthermore, the system is designed for single-person operation, reducing on-site manpower requirements.
The RCS200C borewell digging machine is designed to meet the needs of various drilling projects across multiple sectors. It is well-suited for domestic water supply, including household wells, village water systems, and emergency water sourcing. In the field of agricultural irrigation, it supports the construction of wells for farmland, orchard drip irrigation, and pasture water supply.
The rig is also used in renewable energy development, such as geothermal air conditioning wells and shallow geothermal exploration. In industrial and exploration drilling, it can be applied to geological sampling, environmental monitoring wells, and small-diameter foundation holes.
The RCS200C also performs reliably under special working conditions, including operations in mountainous rock formations, areas without electrical infrastructure, and confined construction sites. This versatility makes it a practical choice for users with diverse drilling requirements.
