Name: 29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: KSZJ-29/23
Price: 30,330.00 USD
Availability: InStock

Rumah > Produk > Kompresor udara pengeboran >

29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine

1025cfm drilling air compressor

400HP Yuchai engine air compressor

23bar work pressure air compressor

Tempat asal:

Cina

Nama merek:

Kaishan

Sertifikasi:

CE, ISO 9001:2000

Nomor model:

KSZJ-29/23

Hubungi Kami

Meminta Kutipan

Rincian produk

Model NO.:

KSZJ-29/23

Kapasitas:

29m³/mnt (1025cfm)

Tekanan Kerja:

23bar (334psi)

kapasitas minyak kompresor udara:

48L

Tahap kompresi::

Ganda

Berat badan:

4850kg

Menyoroti:

1025cfm drilling air compressor

400HP Yuchai engine air compressor

23bar work pressure air compressor

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

USD29800-USD30860

Kemasan rincian

Itu dapat dikirim dengan satu kontainer 20".

Waktu pengiriman

10-15 Hari Kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

100 set per bulan

Produk terkait

Video

KSCY-400/14.5K 400cfm Diesel Portable Screw Air Compressor With Cummins Engine

Dapatkan Harga Terbaik

Video

1107CFM 25Bar Mesin Diesel Kompresor Sekrup Kompresor Udara Portable Untuk Tekanan 2.5-1.8 Mpa

Dapatkan Harga Terbaik

Video

Kompresor Udara Tipe Trailer Empat Roda LGCY17-18-18/15TK Tekanan Kerja 18bar Mesin Cummins 210HP Untuk Pengeboran 150-200m

Dapatkan Harga Terbaik

Video

Kapasitas Udara 31m3/Min Kompresor Udara S100T Tekanan Kerja 25bar Dengan Mesin Xichai 309KW

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine

Product Description

Air Filtration System: A high-efficiency air intake filter prevents dust particles from damaging the motor and main engine rotor.
High-Efficiency Main Engine: A large rotor design and large bearings ensure low speed. This ensures low operating noise, minimal vibration, and extended service life.
Modulation Control: A regulating valve controls the intake air volume and diesel engine speed based on air demand to minimize fuel consumption, contributing to energy savings and emissions reductions.
Control Panel: Easy to use; features include alarms for high water temperature, high pressure, high exhaust temperature, and high speed.
Diesel Engine: Utilizes renowned diesel engines from Cummins, Steyr, Caterpillar, and Yuchai. This ensures superior compressor performance and reliability.
Cooler: A larger cooler and fan design ensures maximum cooling, especially in extreme operating environments.

Product Specifications

Model No.	KSZJ-29/23
Capacity	29 m³/min (1036cfm)
Working pressure	23bar (334psi)
The head model no.	SKY11G194
Air compressor oil capacity	65L
Compression Stage:	2
Outlet connection size*Qty	G2×1, G3/4×1
Engine
Engine Model No:	Yuchai YC6MK400L-K30
Cylinder bore stroke number of cylinders	120×145×6
Displacement	9.839L
Rated RPM	1800r/min
Unload RPM	1400r/min
Rated Power	288KW(400HP)
Diesel engine oil Capacity	28L
Fuel Tank Capacity	350 L
Electrical System Voltage	24V
Package
Wheel size * Qtys	7.5-16*4
Weight	4850KGS
Dimension (mm)	3500×1950×2030

Application area

Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.

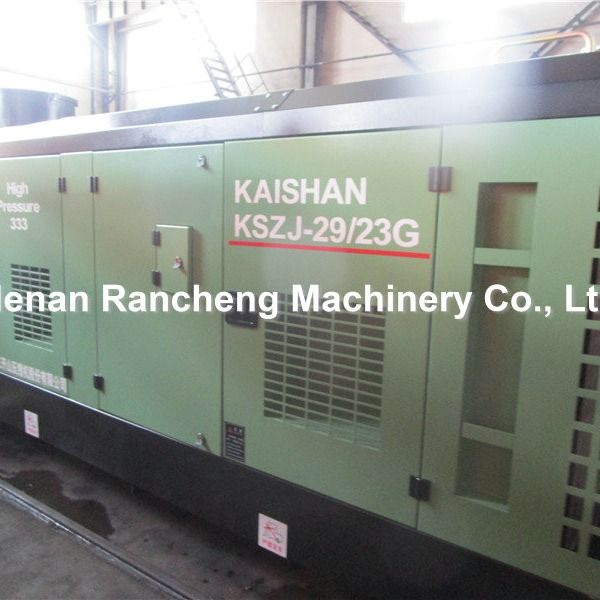

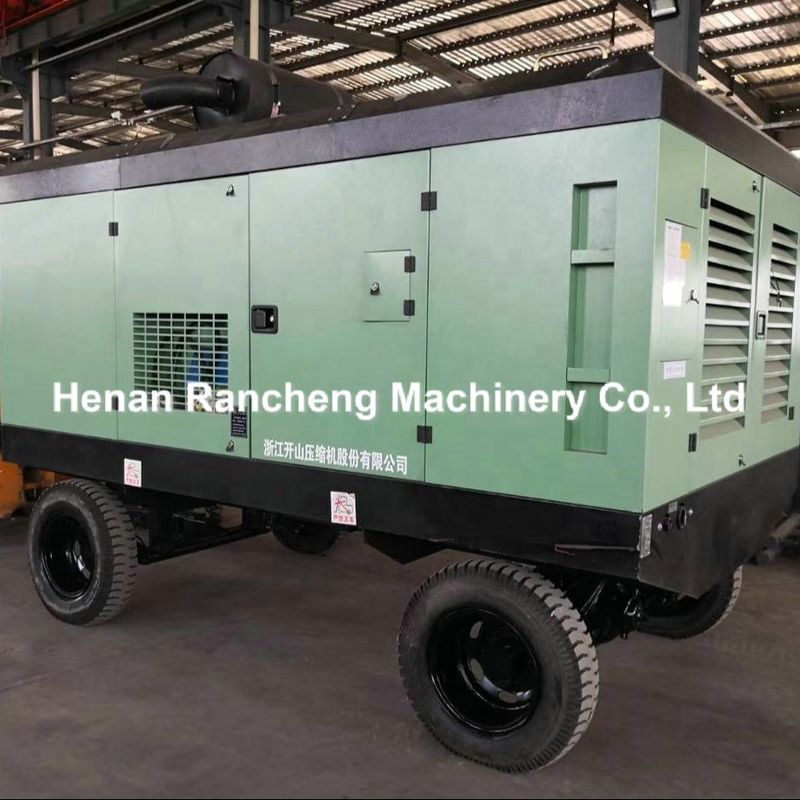

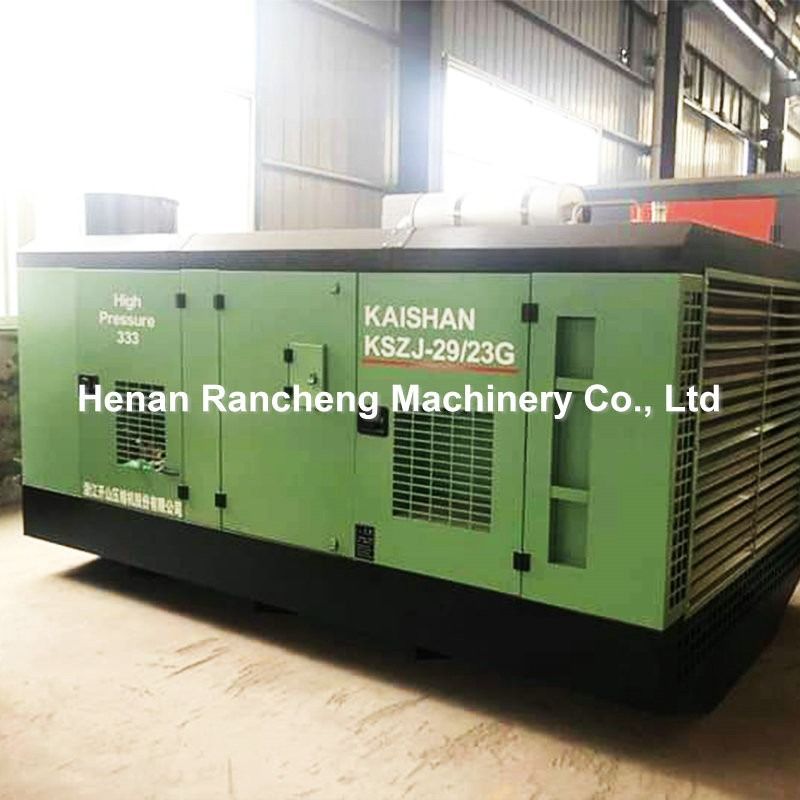

Product Image

29m³/Min (1025cfm) Air Compressor Air Capacity:1036CFM Work Pressure:23bar 400HP Yuchai Engine 0
