Name: Full Hydraulic RCQ-10W Piling Rig - 10m Depth With 40km/H Traveling Speed
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ-10W
Price: 21800 USD
Availability: InStock

Rumah > Produk > Pengeboran Rotary Rig >

Full Hydraulic RCQ-10W Piling Rig - 10m Depth With 40km/H Traveling Speed

Full Hydraulic piling rig 10m depth

Rotary drilling rig 40km/h speed

RCQ-10W piling rig with warranty

Tempat asal:

Cina

Nama merek:

RanCheng

Sertifikasi:

CE, ISO 9001:2000

Nomor model:

RCQ-10W

Hubungi Kami

Meminta Kutipan

Rincian produk

Nama:

Rig Penumpuk Hidrolik

Model:

RCQ-10W

Kedalaman lubang tiang pancang:

10m

kecepatan perjalanan:

40km/jam

Menyoroti:

Full Hydraulic piling rig 10m depth

Rotary drilling rig 40km/h speed

RCQ-10W piling rig with warranty

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

USD21800

Kemasan rincian

Itu dapat dikirim dengan satu kontainer 40".

Waktu pengiriman

10-15 Hari Kerja

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

100 set per bulan

Produk terkait

Video

Full Hydraulic RCQ-10W Piling Rig - kedalaman 10m, kecepatan putar 2200 R/Min

Dapatkan Harga Terbaik

Video

RCQ-10C Mini Hydraulic Rotary Piling Rig dengan Mesin Diesel Kubota 36KW

Dapatkan Harga Terbaik

Video

RCQ-10C Mini Hydraulic Rotary Piling Rig Kubota Mesin Diesel 2000mm Lebar Sasis

Dapatkan Harga Terbaik

Video

Mini Rig Pengeboran Putar Hidraulik Kedalaman 10m Mesin Diesel Kubota Berat 9.3T

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Full Hydraulic RCQ-10W Piling Rig - 10m Depth With 40km/H Traveling Speed

Key Attributes

Name	Hydraulic Piling Rig
Model	RCQ-10W
Piling hole depth	10m
Traveling speed	40km/h

Product Overview

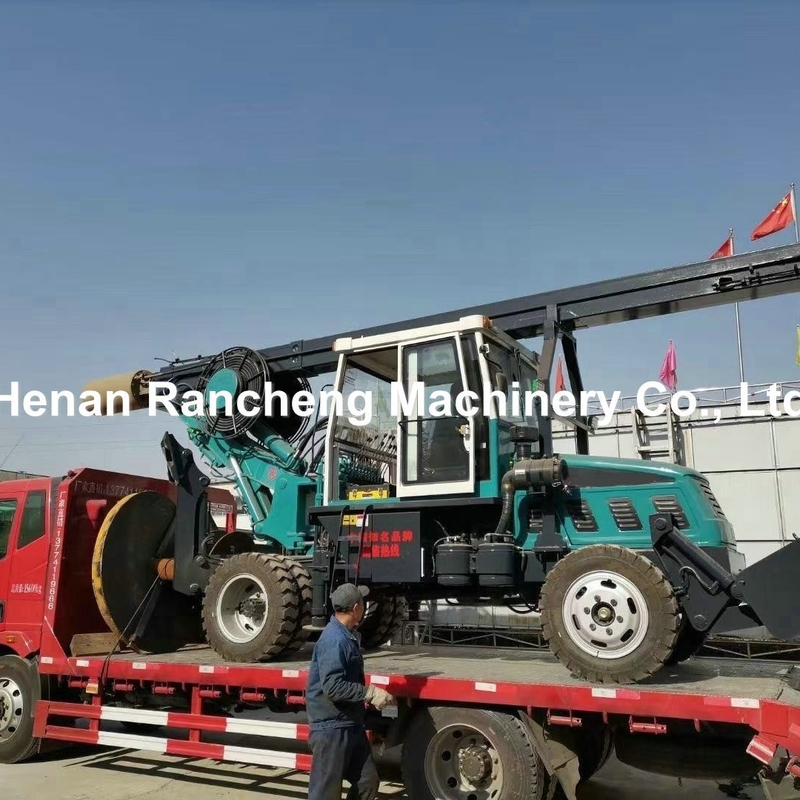

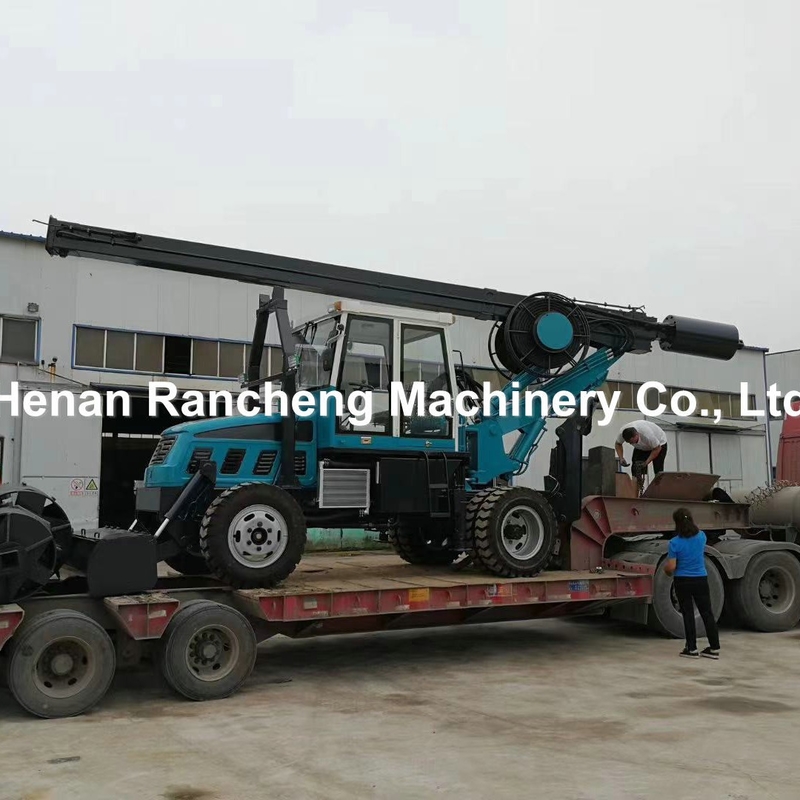

RCQ-10W is a small hydraulic wheeled pile foundation drilling rig with a drilling depth of 11 meters. The rig is equipped with a variety of drilling tools and can drill pile holes with diameters from 100 to 800 mm. The rig has high production efficiency and can be quickly transported between construction sites. It is flexible, convenient and efficient. It is designed for high-speed railway construction projects across the country.

Technical Specifications

Vehicle Parameters
Dimensions	mm	7300×2100×2850
Minimum gap	mm	230
Wheel track	mm	Front 1860, back 1920
Wheelbase	mm	2650
Upright height	mm	7500
Telescopic trajectory	mm	800
Total weight	kg	6500
Tire size	-	Front 700-16, back 750-16
Traveling speed	km/h	40
Gradeability	°	25
Diesel Engine
Model	-	Quanchai 485
Power	kw	34
Rotary speed	r/min	2200
Generator Set
Power	kw	40-50
Hydraulic System
Wedge pressure	mpa	16-20
Outrigger pressure	mpa	16-20
Max pressure	mpa	20
Main pump flow	l/min	32
Working Range
Piling hole diameter	mm	100-800
Piling hole depth	m	6-10
Drill pipe speed	r/min	40-65
Drill pull force	KN	100
Rotation angle	°	360
